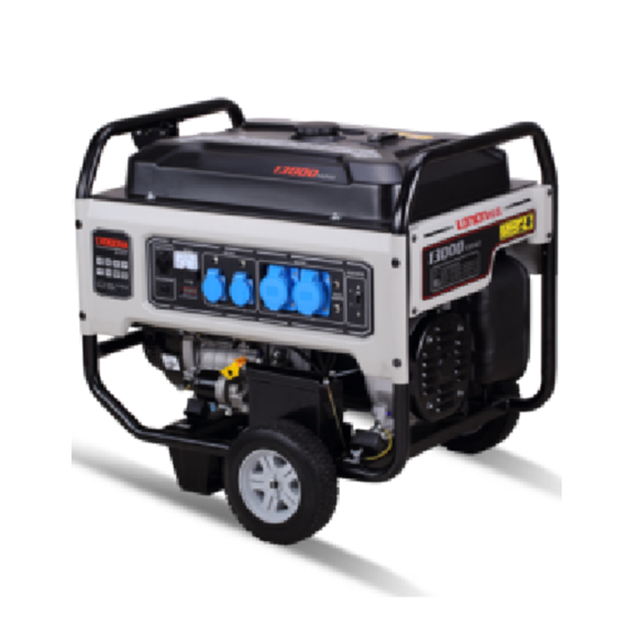

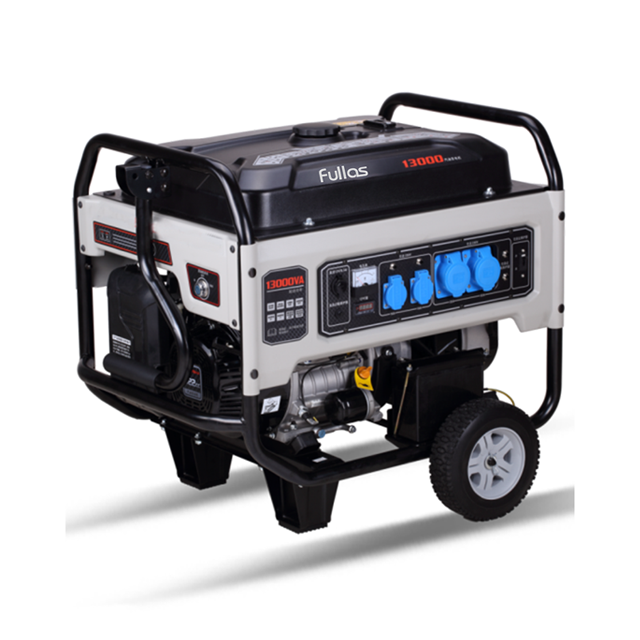

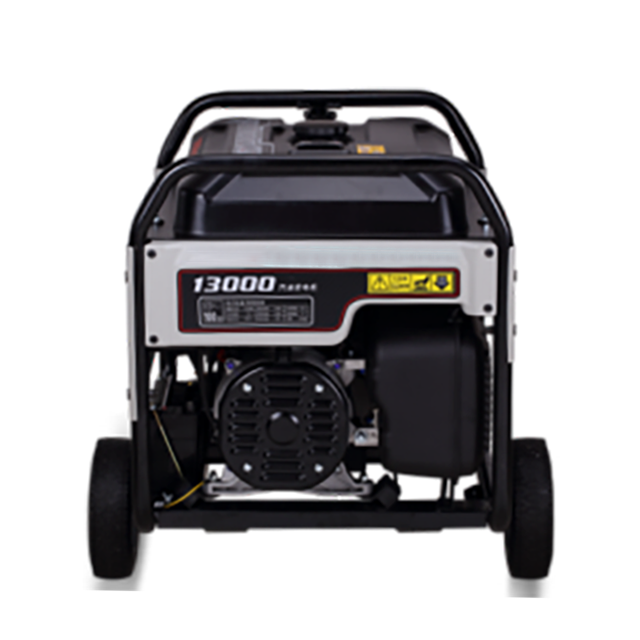

Générateur d'essence 13KW alimenté par un moteur à essence 620CC

  • Engine model:FP196FD
  • Power out put:13.3kw
  • Fuel tank capacity:48L
  • Continuing:10h
État de disponibilité:
  • FP13000
  • Fullas

FULLAS Rated Power 13KW Gasoline Generator


1.Circulating load and constant load test: 1000 hours continuous running test per load type, failure-free.
 Circulating load test process: From no-load (6 minutes), 25%, 50%, 75% to 100% load (15 minutes per step)

circulating, total           circulating test time:1000 hours.
 Constant load test: under full load situation, continuous running time:1000 hours.


2.Reinforced crankshaft neck design, better shock resistance. LC196F engine is designed for 1000 hours reliability.
3.Voltage Regulator uses aluminium alloy cover, better heat dissipation and water-proof performance, more reliable.

downLoadImg (30)

4.New air duct design, makes the temperature of alternator 20%lower than normal design, enhances the service life of generator.

downLoadImg (31)

5.More reliable choke switch, more efficient fuel switch.

downLoadImg (32)

6.48L fuel tank, continuous running time over 10 hours.

downLoadImg (33)

7.With both manual and electric starts, only Loncin has this design, even the battery is without power, it can be started by manual, more reliable under emergency use.

downLoadImg (34)

Generator parameter

Model FP13000D FP13000DS
Engine model FP196FD
Type Single cylinder, OHV,   air-cooled, 4-stroke
Displacement(ml) 620cc
Power out put 13.3kw/3600rpm
Fuelconsumption ≤374g/kw.s
Oil Capacity 1.6L
Fuel tank capacity 32L
Oil Capacity 1.5L
Ignition system Transistorized magneto
Starting system Recoil/electric start
Displacement(ml) 622CC
Charging current/ current DC 12V/8.3A
Rated frequency 50HZ 60HZ 50HZ
Rated voltage 220V 120/240V 380V
Rated current 39A 79.2A/39.6A 17.1A
Max current 41A 87.5A/43.8A 18.1A
Rated output 8.5kw 9.5kw 9kw
Max output 9.5kw 10.5kw 10kw
Fuel tank capacity 48L
Continuing 10h
Net weight 143kg
Dimension 800*620*650mm
